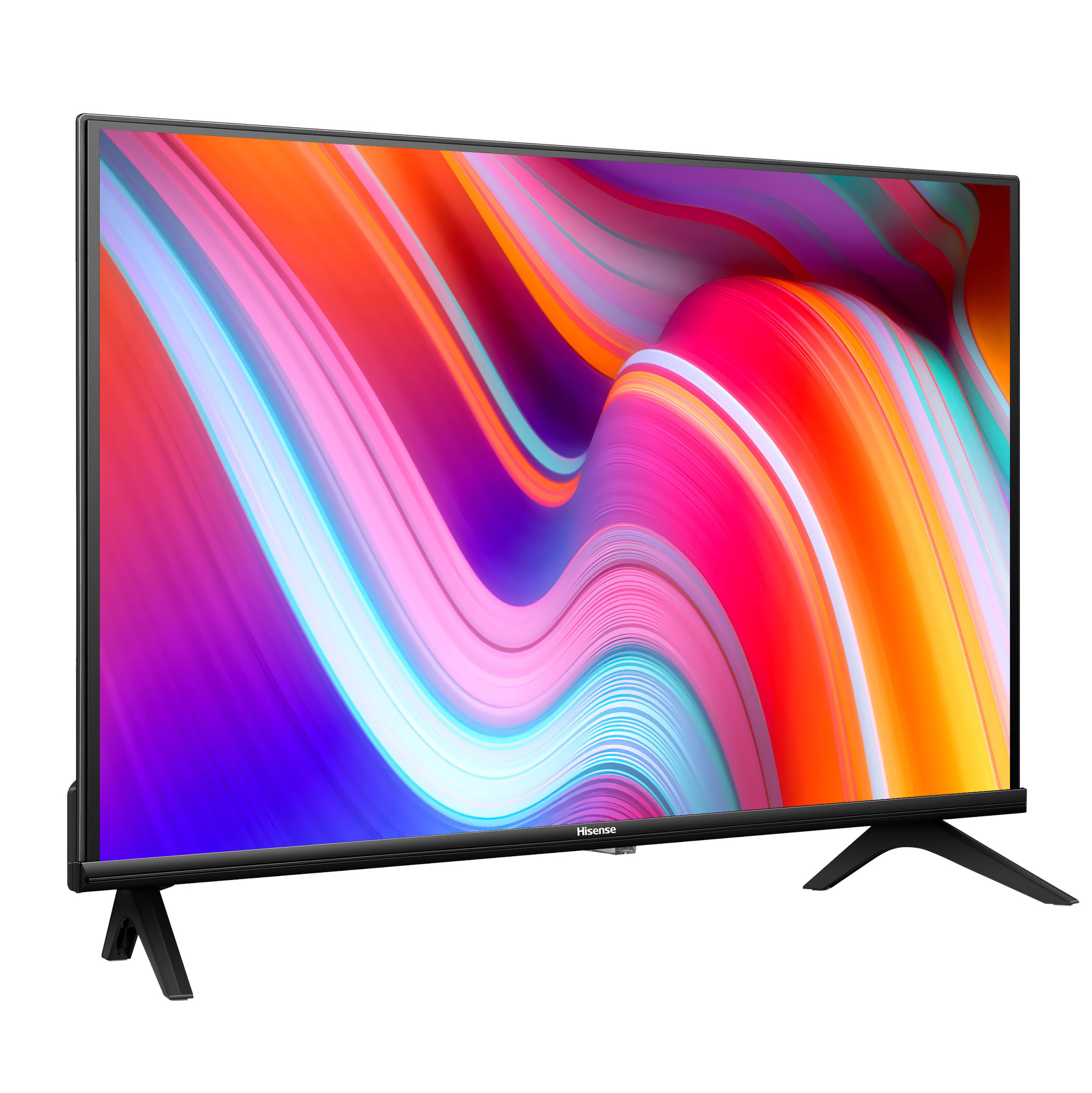

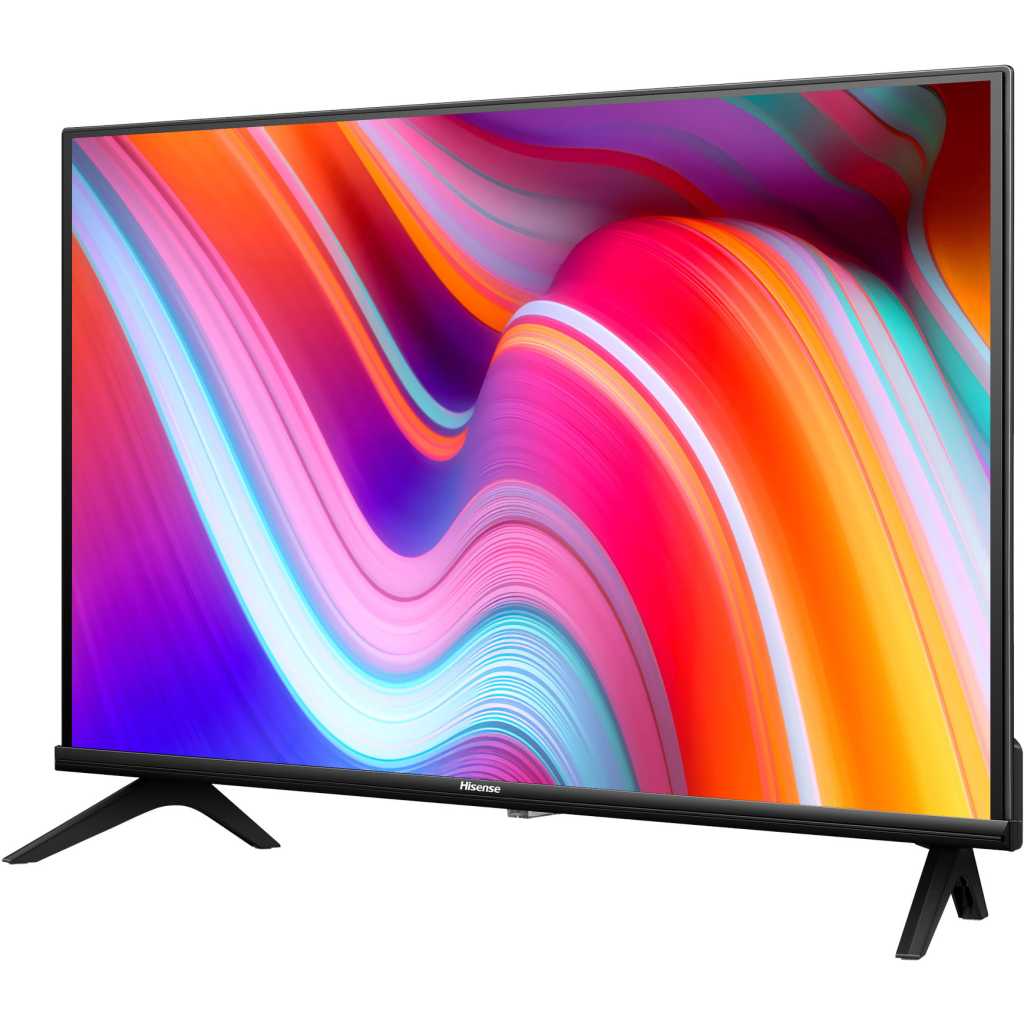

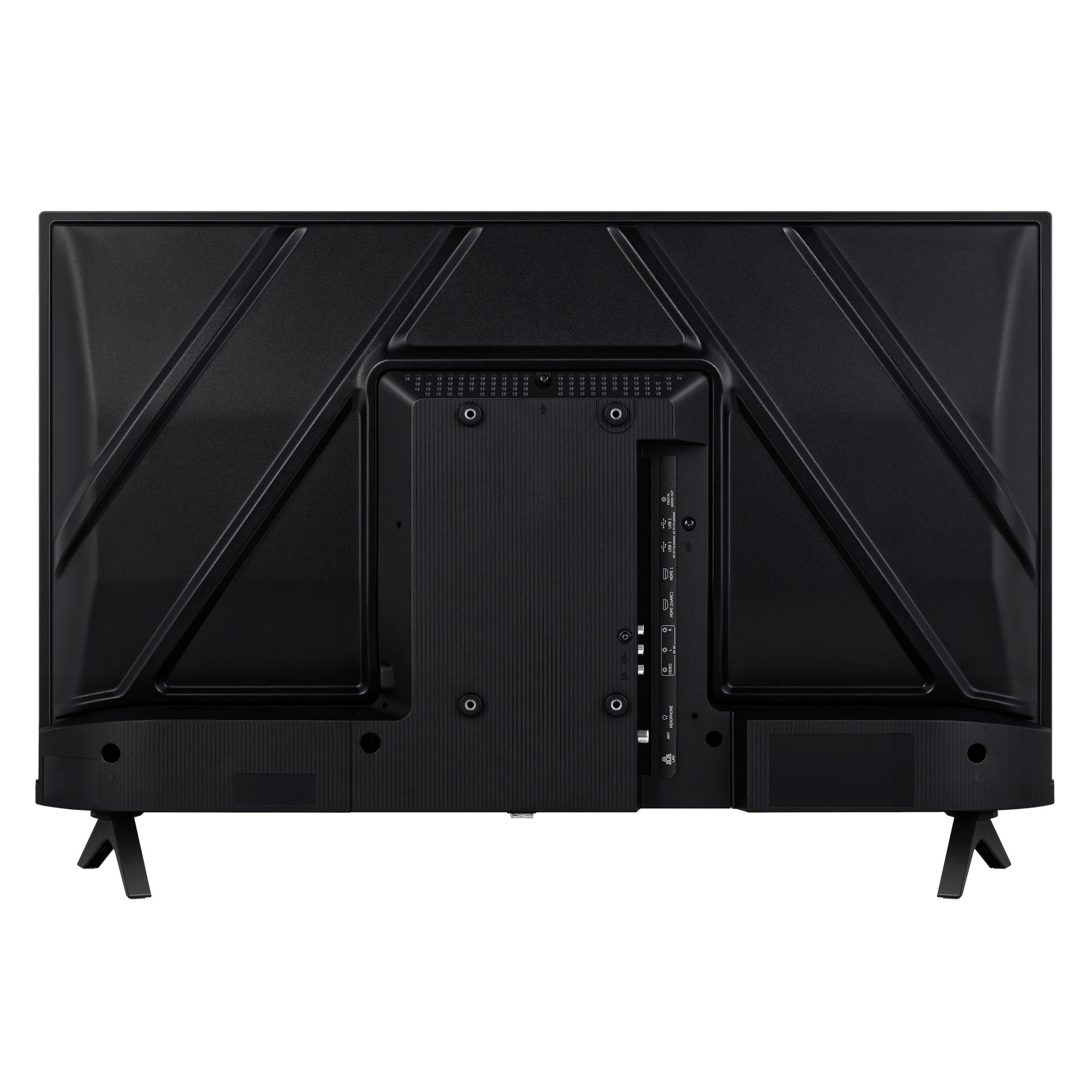

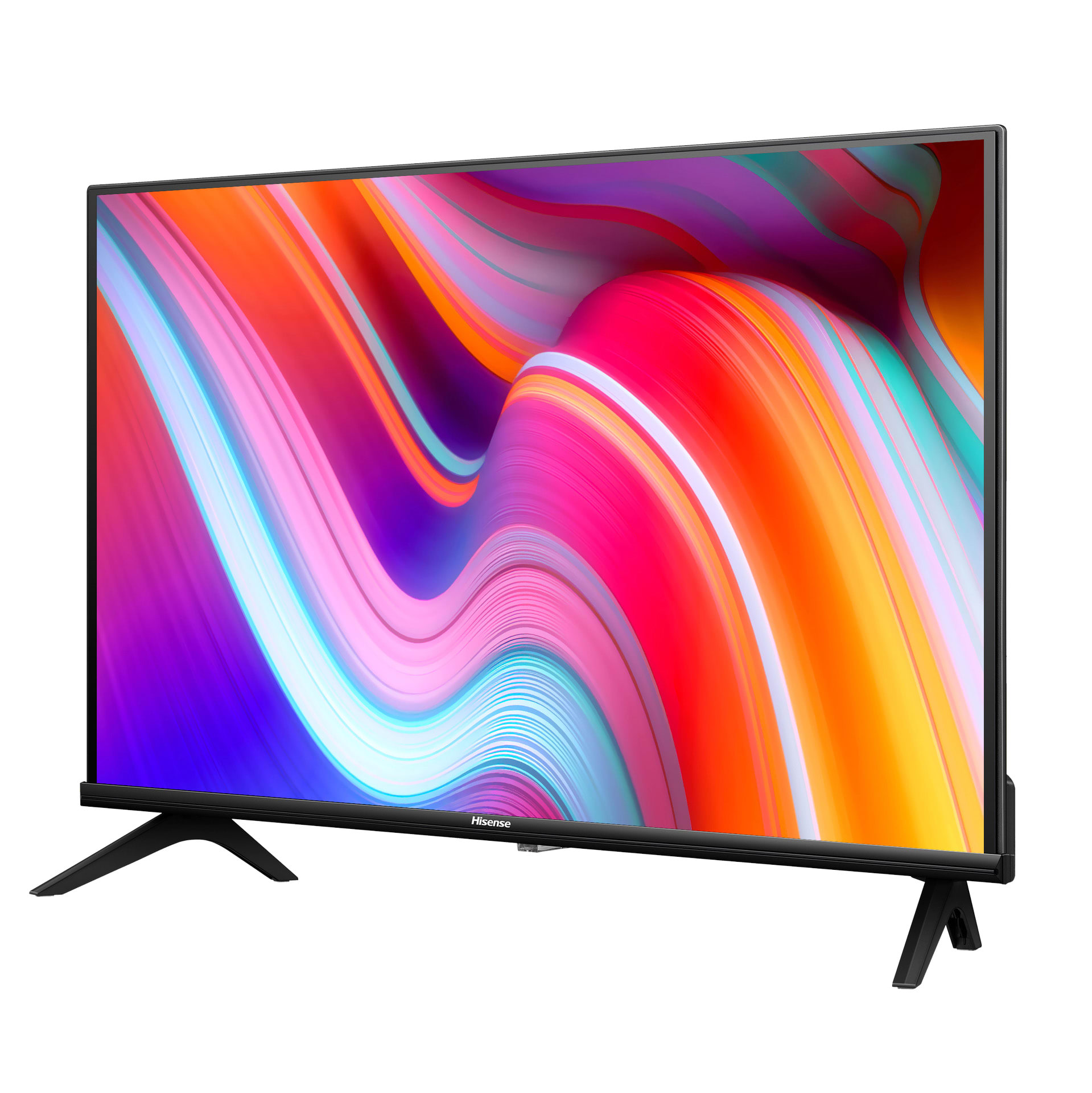

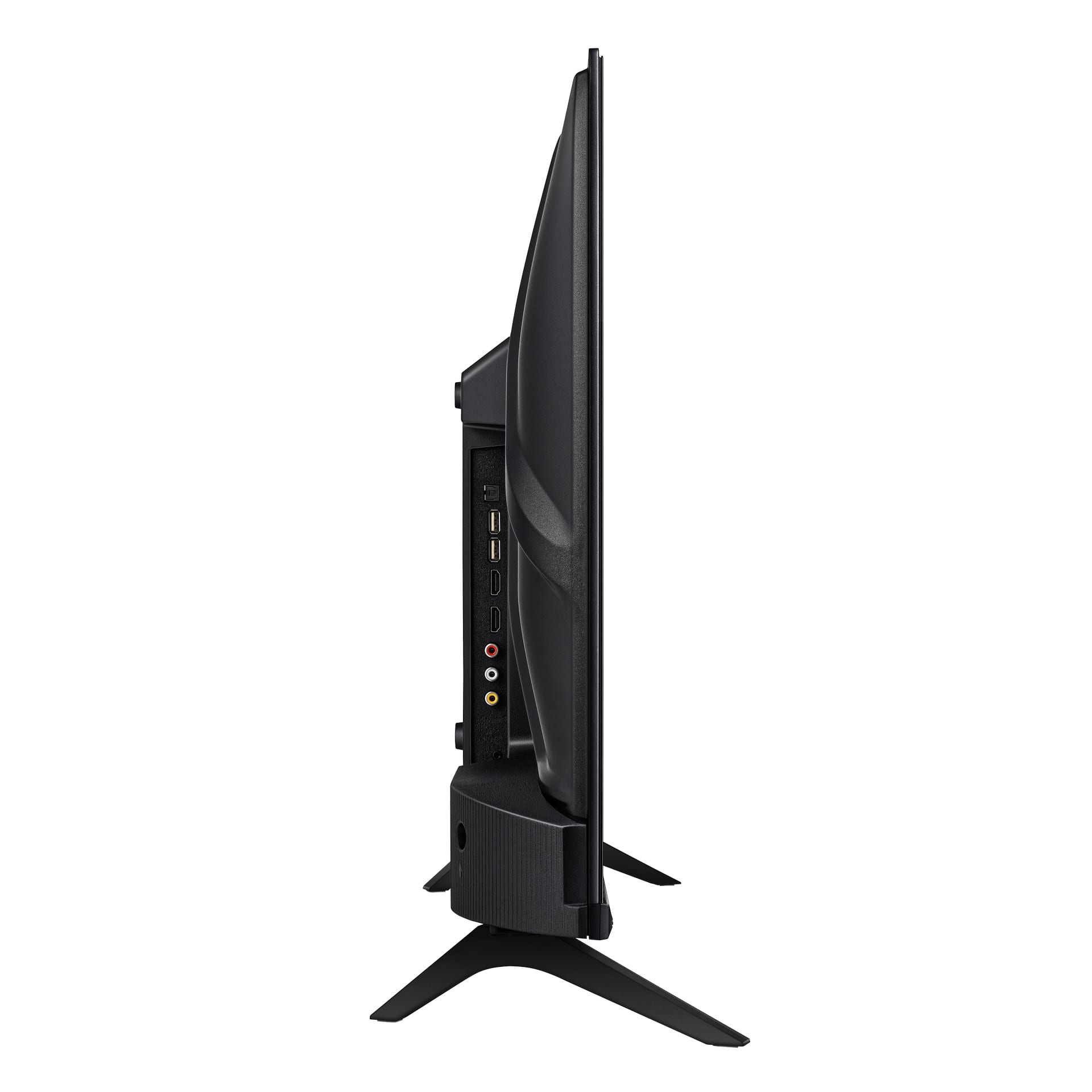

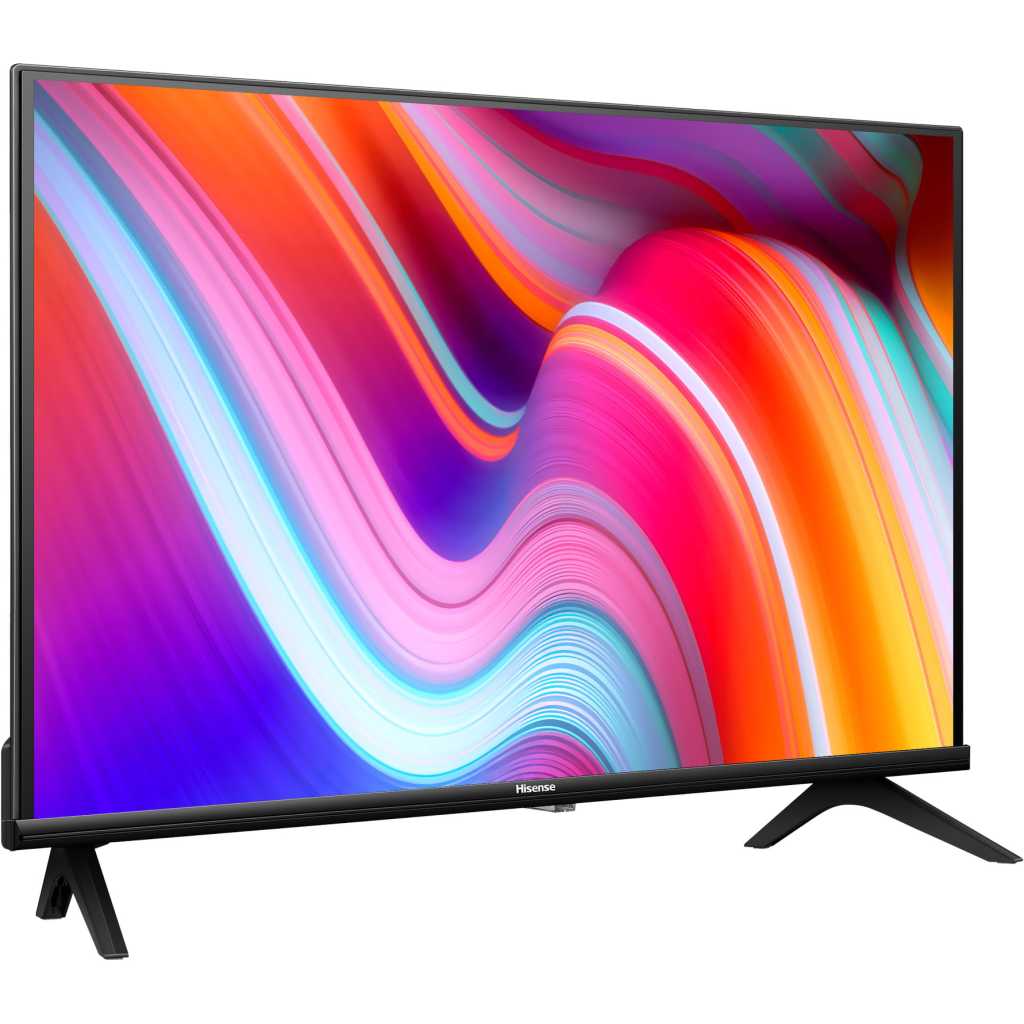

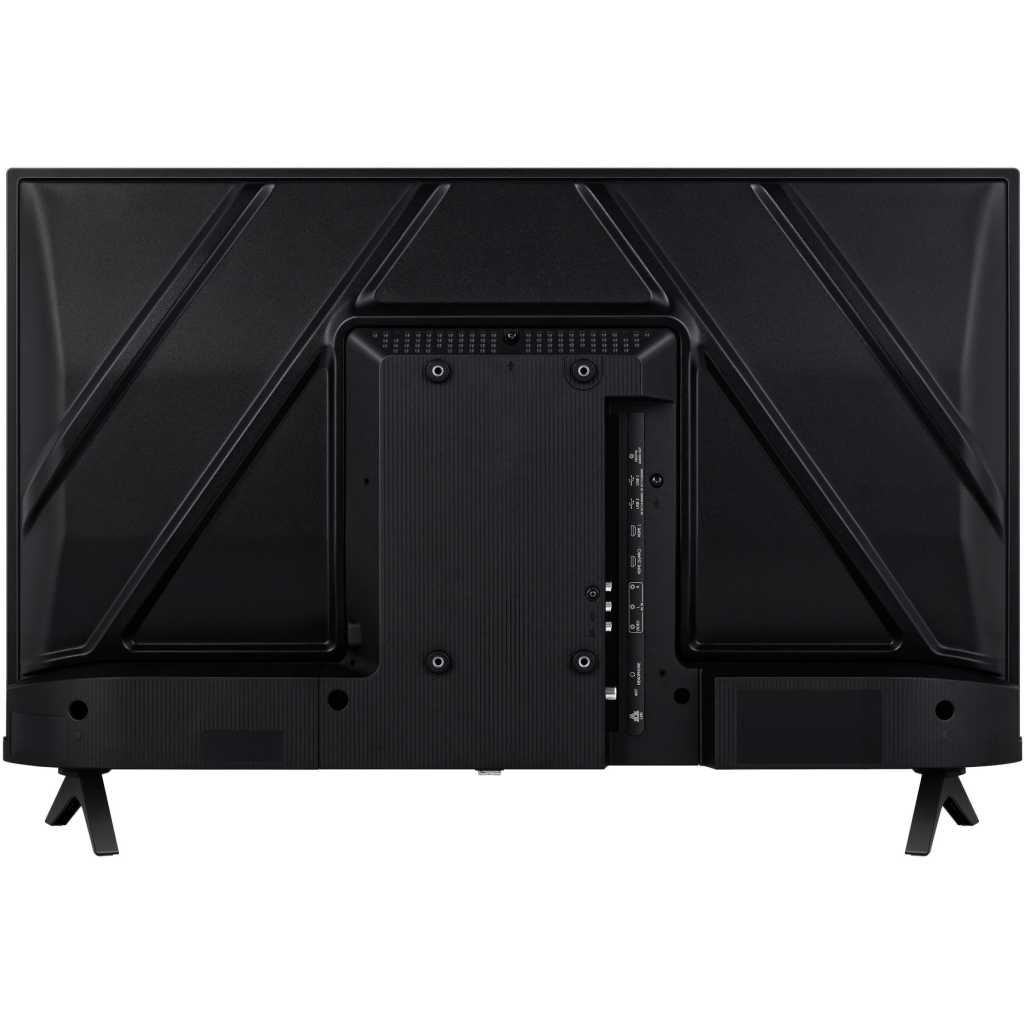

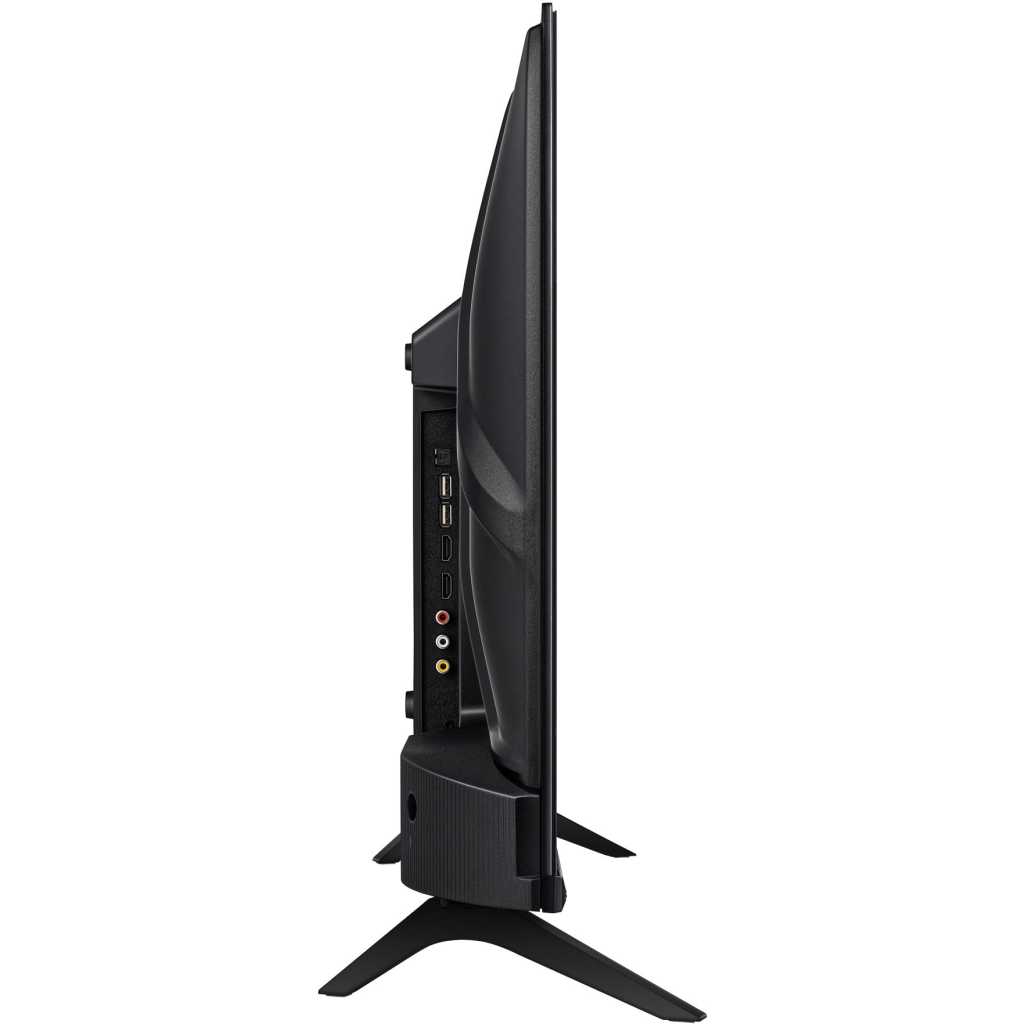

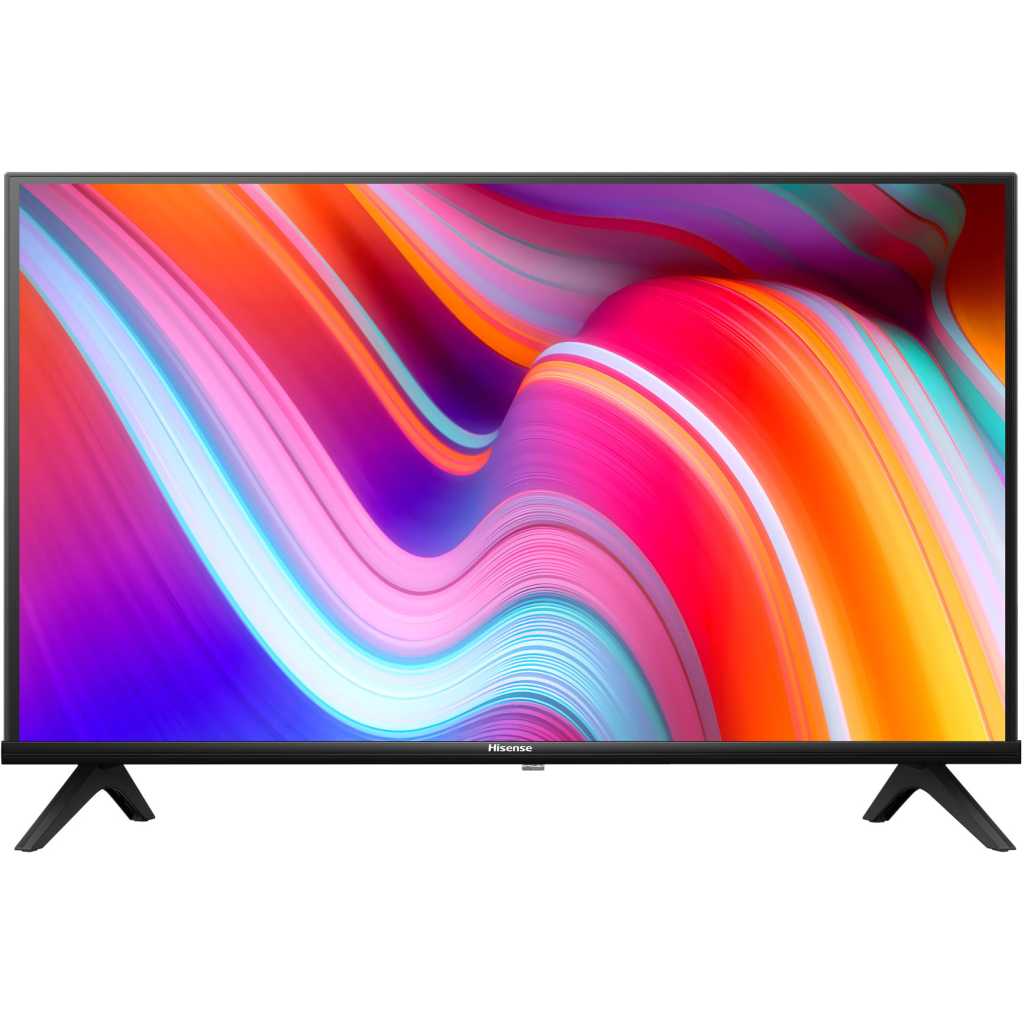

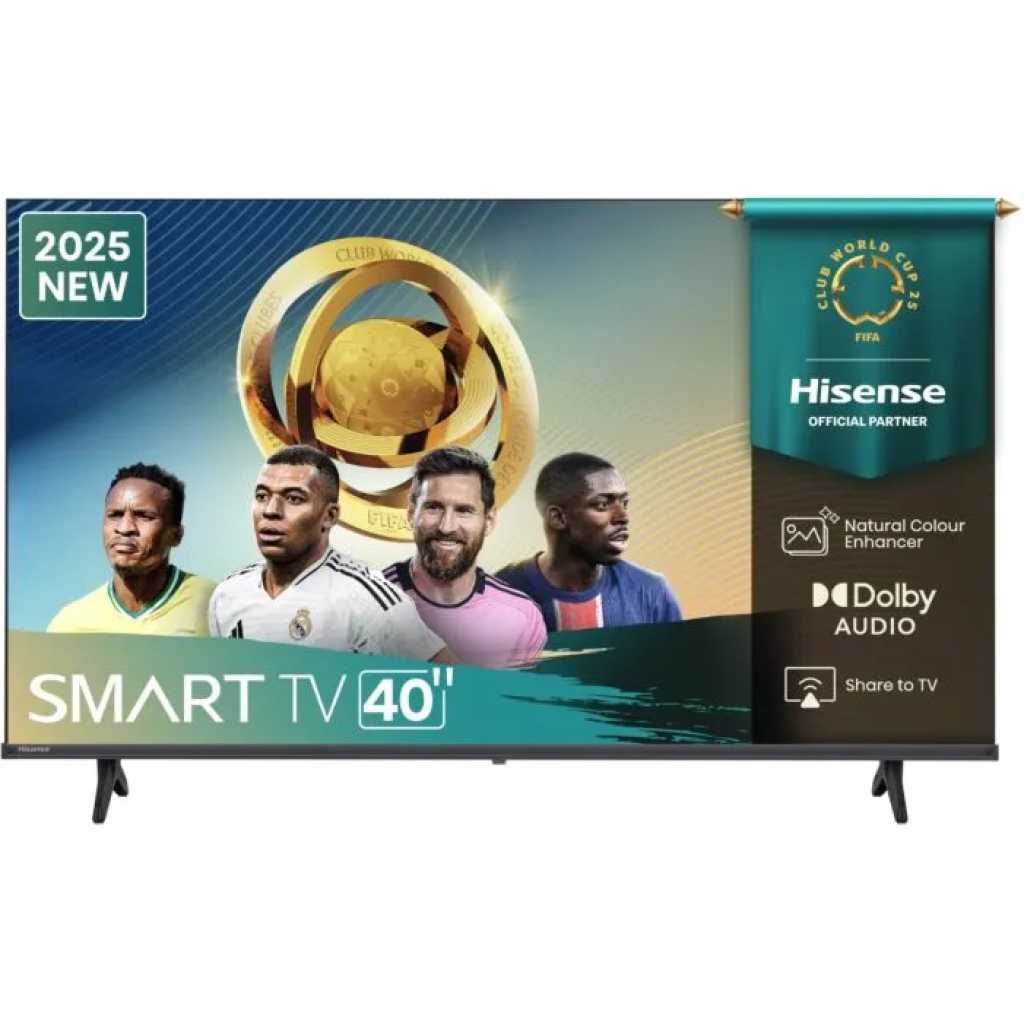

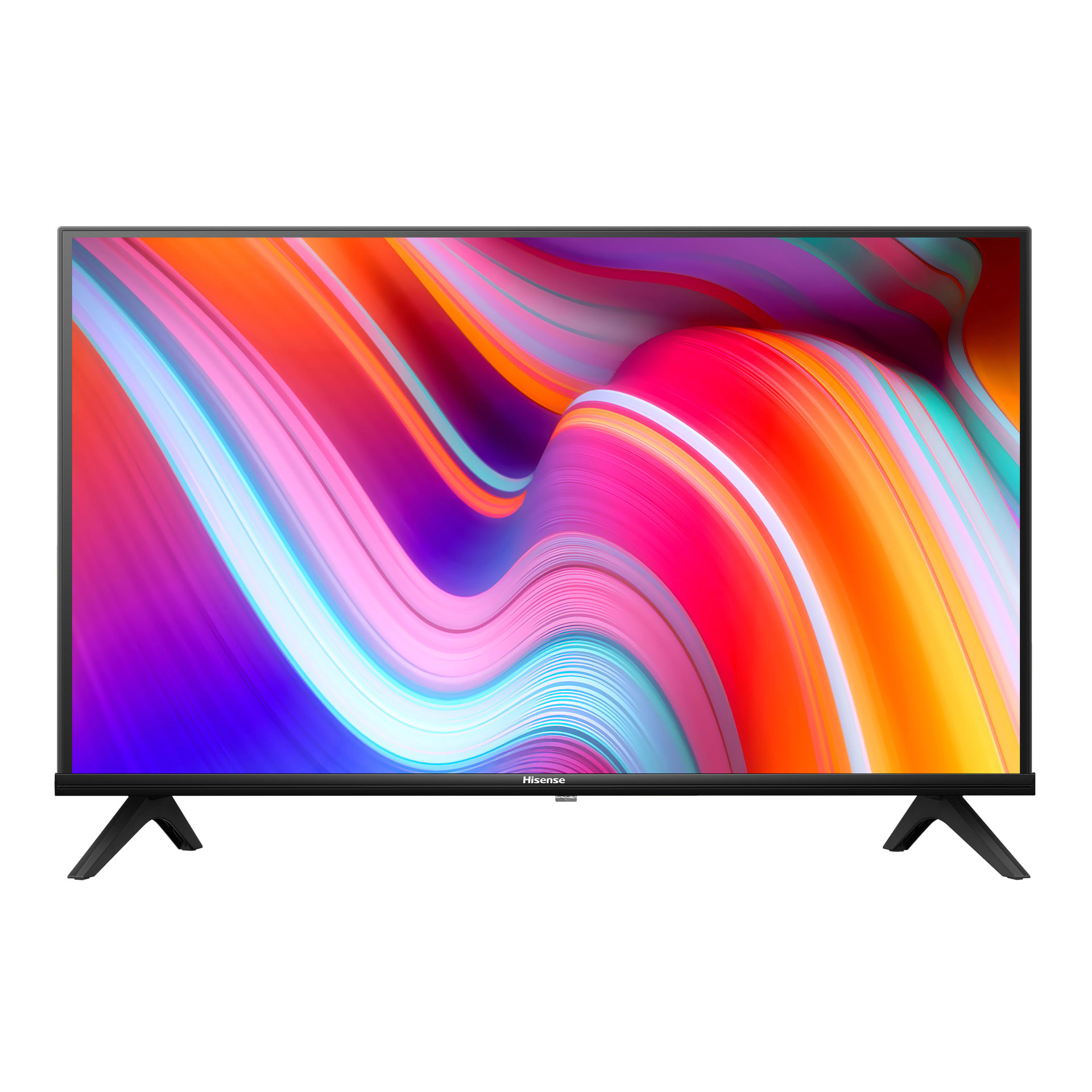

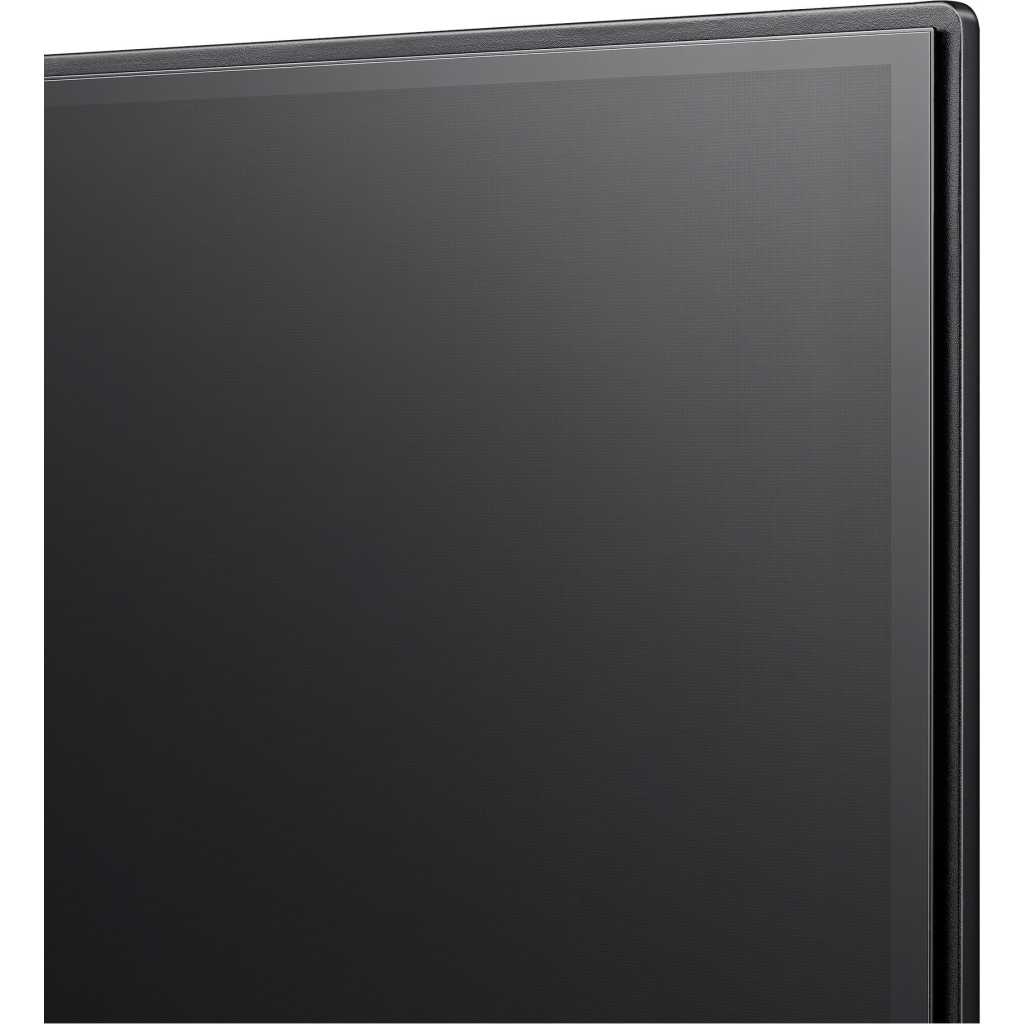

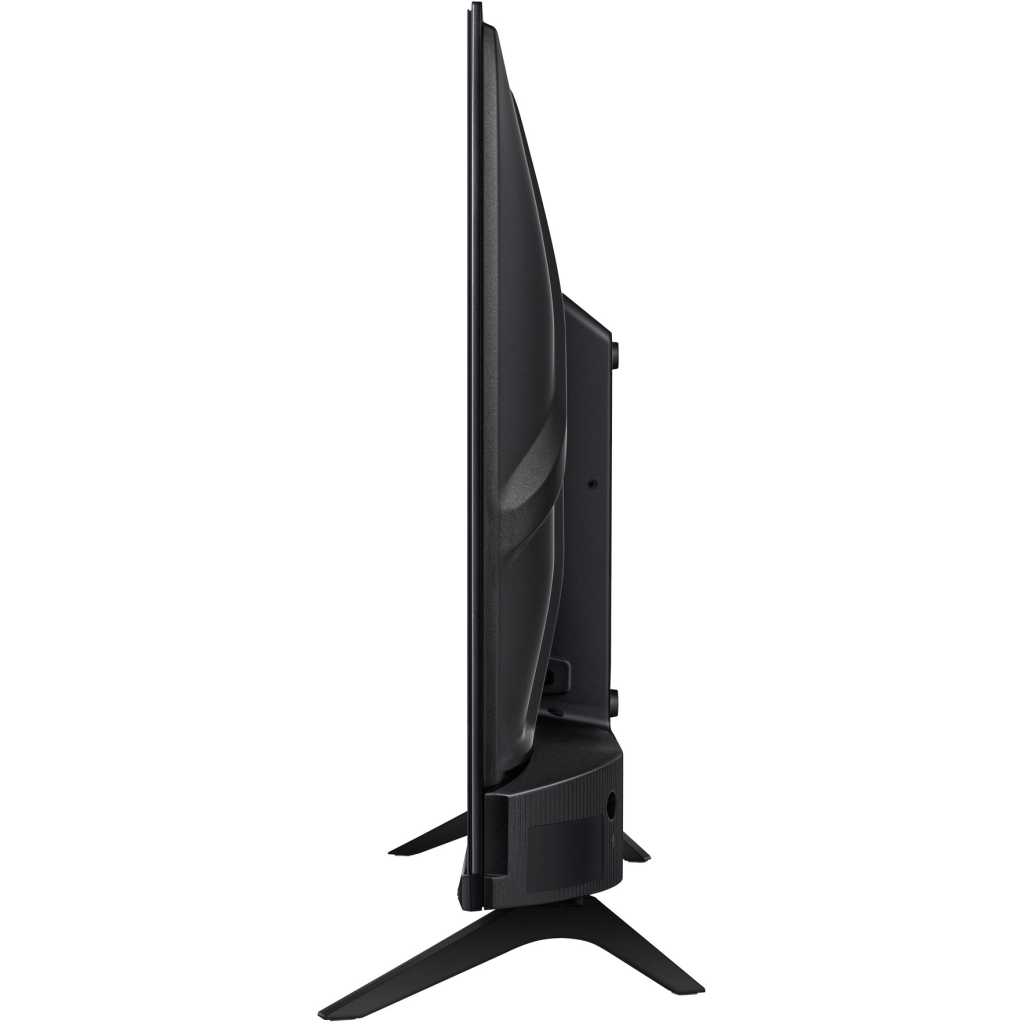

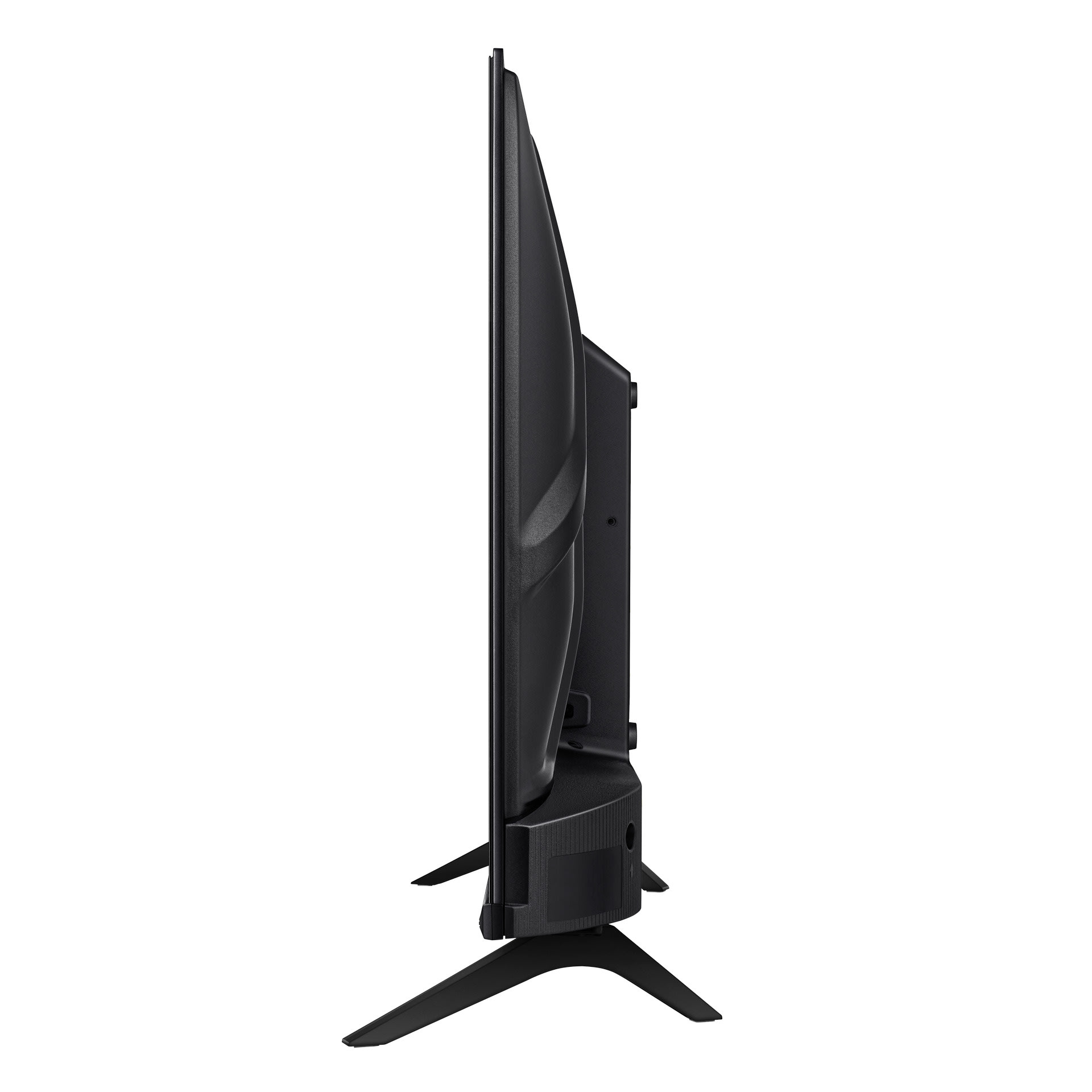

Hisense 40 Inch Smart VIDAA TV Frameless Flat Screen Smart TV, 40A4KS, FHD, Bazeless Design – Black Hisense 102cm (40″) Smart LED TV – 40A4Q Image display Panel manufacturer Hisense Panel model LCM:JHD400K1F01-T0L4, Open Cell : V400HJB-P03-CG Active display area, horizontal dimension 878,112 Active display area, vertical dimension 485,352 Screen size (rounded to nearest integer) 100 Screen size (rounded to nearest integer) 40 Display technology LCD/ LED lit Backlight source Direct LED Resolution (Horiz x Vert) 1920*1080 Screen curvature radius – Colour depth 8bit Image refresh frequency 60 Smooth motion rate 60 3D image – Typical brightness of white 250nit Native contrast ratio 5000:1 Viewing Angle (Horiz / Vert) 178/ 178 Quantum dot No Wide colour gamut No KSF phosphor No UHD Premium No Response Time 9,5 Connectivity RF- Radio frequency input 1 AV input 1 AV output 0 USB interface type 3.0 (Qty / List….) 0 USB interface type 2.0 (Qty / List ….) 1/ USB Optical digital audio output (SPDIF) 1 Earphone jack 1 HDMI ports HDMI inputs 2 HDMI type 8K@60Hz No HDMI type 4K@60Hz with HDCP version 2.2 No HDMI 2.1 compliant input No Enhanced Audio Return Channel ( eARC) Yes CEC- Consumer Electronics Control via HDMI Yes Smart TV Ethernet port (RJ45 connector) 1 Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..} b, g, n Wi-Fi bands 2,4 DLNA compliance Yes Bluetooth / BT version No / No Anyview (Screen mirroring) Yes BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay) Iview, SBS on Demand, 9Now，tenplay Installed Applications {List ……} Netflix/Youtube/Prime Video…… Freeview Plus – HbbTV 2.0 Yes Web browser [Chrome | Opera | Other] Odin Digital TV reception Digital broadcating (DVB-T / DVB-T2) Yes / Yes Video decoder (MPEG2 / MPEG 4) Yes / Yes LCN- Logical channel number and DTV Service name support Yes Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX Yes / Yes / 4:3 Subtitles Yes EPG- Electronic programming guide, 7 days for all services Yes Audio description (vision impairment aid) Yes Parental rating lock Yes Analog Tuner Yes Image processing Backlight control No Light sensing No Dynamic backlight control No Frame rate control No Variable Refresh Rate (VRR) No Freesync No Auto Low Latency Mode for VRR No Local dimming/ controllable zones No Zoom function settings Auto/ 16:9/ 4:3/21:9/Movie Zoom/ Dot to Dot HDR – High Dynamic Range for luminance (DMP / Netflix / HDMI) No / No / No HLG (Hybrid Log-Gamma) for HDR No / No / No HLG (Hybrid Log-Gamma) for HDR No HEVC (H.265) decoder No Motion enhancement and compensation (MEMC) No Picture mode Standard,Cinema Day, Cinema Night, Dynamic, Sports Sound Audio power output per channel 7W Number of speakers (Tweeter / Midrange / Woofer) 0 /2 /0 Automatic volume level (AVL) Yes Audio equalizer Yes Dolby Digital Yes Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….} DTS Virtual X Lip-sync adjustment Yes Sound mode Stand，Cinema……. Features On/off timer Yes Power off if no signal Yes Sleep timer Yes Program lock Yes OSD transparency control Yes User interface VIDAA U8.5 Software version OSD indication Yes Legal requirements: Disclaimer / Acceptance of Terms Yes / Yes Favourite channels list Yes Electronic point of sales (E-POS) Yes OTA- Over the air software updates Yes Voice command No Screen mirroring {Miracast, Anyview Cast, …} Anyview Cast Smartphone remote control application {Rremote Now, …} vidaa app Replaceable demo video for Store mode Yes Remote control via serial port No USB media player Personal Video Recorder Yes Time Shift Yes DTV Recording (EPG scheduling / start from Standby ) Yes / Yes DivX decoder No MPEG4 (H.264) / H.265 decoder Yes / Yes DMP- Digital media player content (Music / Video / Photos / Text) Yes / Yes / Yes / No DMP Auto-play No DMP for UHD content via USB Yes DMP File allocation table (FAT / FAT32 / exFAT / NTFS) Yes / Yes / No / Yes PVR File allocation table (FAT / FAT32 / exFAT / NTFS) Yes / Yes / No / Yes Hotel lock Protected Hotel lock submenu (Password / fixed code) No / Yes Clone function for programs, sound and image settings. Yes Sub-menu lock, including tuning lock Yes Keyboard lock Yes Maximum volume lock Yes Power on volume Yes Power on, apply default sound/image settings No Power on source selection Yes Power on RF channel selection Yes Power on mode (On / Standby / Last) Yes / Yes / Yes Inputs access (Enable / Disable) Yes Hardware Processor / Cores NT72690TBG-8C2K/W Dual Tuner No Colour (Front bezel, rear, stand) Black / Black / Black Speakers mounted in enclosure Yes Mains power switch No Swivel base No Compact packaging Yes Supply range [Voltage / Frequency ] AC100~240V,50Hz/60Hz Standby consumption < 0.5W Maximum time delay Power On to sound an image 30 Installation Stand area (Width / Depth) 727×183 Wall mount dimensions (Horiz x Vert) 100×200 Wall mount, screw thread M6 VESA compliance NO Detachable power cord Yes Power cord length 155 Accessories Remote controller (Technology / Part number ) IR /EN2K38H Battery (size / quantity) AAA / 2 User manual (Available online) / Quick setup guide (Print) 1 / 1 Warranty [In User manual | In separate sheet] In separate sheet Skype camera (Qty / Part number) – 3D glasses type [Passive | Shutter] / Link [RF | IR | BT] – 3D glasses (Qty / Part number) – Dimensions Dimensions with stand (W x H x D) 898X559X183 Dimensions without stand (W x H x D) 898X511X78 Carton box dimensions (W x H x D) 1008x113x615 Net weight (with stand / without stand) 4,8 Gross weight 6,9 Container load (20ft / 40ft / 40ft HC) 342/708/944 Licensing and certification EMC- Electromagnetic Compatibility Yes CB- Electrical safety Yes HDMI Yes (Hisense internal test) Dolby Digital Yes MEPS- Test report Yes ROHS No Electrical safety conformity for Australia Yes Documentation CB report and certificate Yes EMC report and certificate Yes Power cord, plug and connector Australian safety approval Yes Commercial model 40A4K Factory model 40A33EXVT Factory Qingdao Description 100cm (40″ ) Direct LED Television Document Specifications form version HA220120 Circulation Restricted, internal use only Status Confirmed Revision number 1 Date 2022/01/20 Issued by Al Image display Panel manufacturer Hisense Panel model LCM: JHD400H1F02-TX, Open Cell :V400HJB-P03-C5 Active display area, horizontal dimension 878,112 Active display area, vertical dimension 485,352 Screen size (rounded to nearest integer) 100 Screen size (rounded to nearest integer) 40 Display technology LCD/ LED lit Backlight source Direct LED Resolution (Horiz x Vert) 1920*1080 Screen curvature radius – Colour depth 8bit Image refresh frequency 60 Smooth motion rate 60 3D image – Typical brightness of white 250 Native contrast ratio 5000 : 1 Viewing Angle (Horiz / Vert) 178/ 178 Quantum dot No Wide colour gamut No KSF phosphor No UHD Premium No Response Time 9,5 Connectivity RF- Radio frequency input 1 AV input 1 AV output 0 USB interface type 3.0 (Qty / List….) 0 USB interface type 2.0 (Qty / List ….) 2/ USB1, USB2 Optical digital audio output (SPDIF) 1 Earphone jack 1 HDMI ports HDMI inputs 2 HDMI type 8K@60Hz No HDMI type 4K@60Hz with HDCP version 2.2 No HDMI 2.1 compliant input (4K@120Hz) No Enhanced Audio Return Channel ( eARC) Yes CEC- Consumer Electronics Control via HDMI Yes Smart TV Ethernet port (RJ45 connector) 1 Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ax, ..} b, g, n Wi-Fi bands 2,4 DLNA compliance Yes Bluetooth / BT version No / No Anyview ( Screen Sharing) Yes BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay) Iview, SBS on Demand, 7 Plus, 9 Jumpin (Tenplay available from Playsore) Installed Applications {List ……} Netflix/Youtube/Prime Video/Foxtel/Stan/ABC iview/Kayo/Tubi/SBS ON DEMAND/Facebook Watch/NBA Freeview Plus – HbbTV 2.0 Yes Web browser [Chrome | Opera | Other] Odin Tuner/ Broadcasting Digital broadcating (DVB-T / DVB-T2) Yes / Yes Video decoder (MPEG2 / MPEG 4) Yes / Yes LCN- Logical channel number and DTV Service name support Yes Teletext / Teletext signal interruption (TAB compliant) Yes / Yes Subtitles Yes EPG- Electronic programming guide, 7 days for all services Yes Audio description (vision impairment aid) Yes Parental rating lock Yes Analog Tuner Yes Image processing Backlight control No Light sensing No Dynamic backlight control No Frame rate control No Variable Refresh Rate (VRR) No FreeSync No Auto Low Latency Mode(ALLM) No Local dimming/ controllable zones No Zoom function settings Auto /16:9 / 4:3 /21:9/ Movie Zoom/Dot to Dot HDR – High Dynamic Range for luminance (DMP / Netflix / HDMI) No / No / No HDR system (HDR10 / HDR10+ / Dolby Vision) No / No / No HLG (Hybrid Log-Gamma) for HDR No HEVC (H.265) decoder No Motion enhancement and compensation (MEMC) No Picture mode Standard， Cinema Day, Cinema Night, Dynamic, Sports Sound Audio power output per channel 7 Number of speakers (Tweeter / Midrange / Woofer) 2 /0 /0 Automatic volume level (AVL) Yes Audio equalizer Yes Dolby Digital Yes Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….} DTS Virtual X Lip-sync adjustment Yes Sound mode Stand，Cinema……. Features On/off timer Yes Power off if no signal Yes Sleep timer Yes Program lock Yes OSD transparency control Yes User interface VIDAA U7 Software version OSD indication Yes Legal requirements: Disclaimer / Acceptance of Terms Yes / Yes Favourite channels list Yes Electronic point of sales (E-POS) Yes OTA- Over the air software updates Yes Voice command No（ not available from RC, BUT CAN SUPPORT VOICE REMOTE BY VIDAA APP, also but only support Alexa AVG） Screen mirroring {Miracast, Anyview Cast, …} Screen Sharing Smartphone remote control application {VIDAA app, …} Yes Replaceable demo video for Store mode Yes Remote control via serial port No USB media player Personal Video Recorder Yes Time Shift Yes DTV Recording (EPG scheduling / start from Standby ) Yes / Yes DivX decoder No MPEG4 (H.264) / H.265 decoder Yes / Yes DMP- Digital media player content (Music / Video / Photos / Text) Yes / Yes / Yes / No DMP Auto-play No DMP for UHD content via USB Yes DMP File allocation table (FAT / FAT32 / exFAT / NTFS) Yes / Yes / No / Yes PVR File allocation table (FAT / FAT32 / exFAT / NTFS) Yes / Yes / No / Yes Hotel lock Protected Hotel lock submenu (Password / fixed code) No / Yes Clone function for programs, sound and image settings. Yes Sub-menu lock, including tuning lock Yes Keyboard lock Yes Maximum volume lock Yes Power on volume Yes Power on, apply default sound/image settings No Power on source selection Yes Power on RF channel selection Yes Power on mode (On / Standby / Last) Yes / Yes / Yes Inputs access (Enable / Disable) Yes Hardware Processor / Cores NT72690TBG-8C2K Dual Tuner No Colour (Front bezel, rear, stand) Black / Black / Black Speakers mounted in enclosure Yes Mains power switch No Swivel base No Compact packaging Yes Supply range [Voltage / Frequency ] 100 ~ 240V / 50Hz Standby consumption < 0.5W Maximum time delay Power On to sound an image 30 Installation Stand area (Width / Depth) 812×186 Wall mount dimensions (Horiz x Vert) 200×200 Wall mount, screw thread M6/ 10mm VESA compliance Yes Detachable power cord No Power cord length 155 Accessories Remote controller (Technology / Part number ) IR /EN2V36H Battery (size / quantity) AAA / 2 User manual (Available online) / Quick setup guide (Print) 1 / 1 Warranty [In User manual | In separate sheet] In separate sheet Skype camera (Qty / Part number) – 3D glasses type [Passive | Shutter] / Link [RF | IR | BT] – 3D glasses (Qty / Part number) – Dimensions Dimensions with stand (W x H x D) 900×565×186 Dimensions without stand (W x H x D) 900×515×85 Carton box dimensions (W x H x D) 1033×129×615 Net weight (with stand / without stand) 5.5 kg /5.4 kg Gross weight 8.4 kg Container load (20ft / 40ft / 40ft HC) 300/624/832 Licensing and certification EMC- Electromagnetic Compatibility Yes CB- Electrical safety Yes HDMI Yes (Hisense internal test) Dolby Digital Yes MEPS- Test report Yes ROHS No Electrical safety conformity for Australia Yes Documentation CB report and certificate Yes EMC report and certificate Yes Power cord, plug and connector Australian safety approval Yes Key Features: Hisense 40 Inch Smart VIDAA TV Frameless Flat Screen Smart TV, 40A4Q, (2025 Model), FHD, Bazeless Design – Black (3YRs WRTY). Bezelless Design Natural Colour Enhancer Noise Reduction DTS Virtual X Vidaa Smart OS WiFi Built in 2025 Model 3 Years Waaranty
