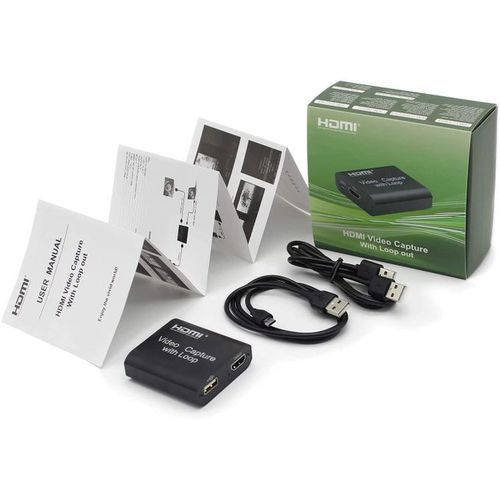

Hdmi Video Capture Card With Loop Out - Black

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 70,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

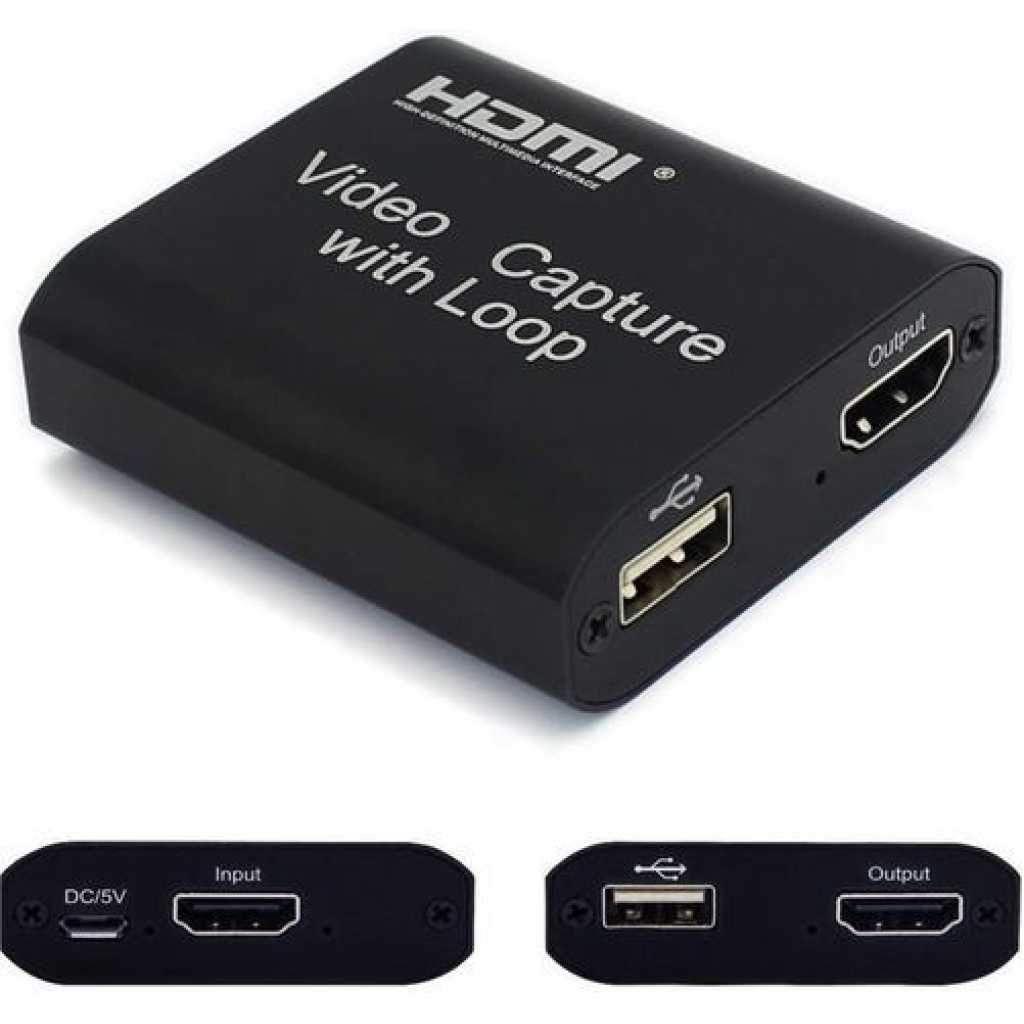

HDMI VIDEO CAPTURE WITH LOOP OUT. This video capture card can capture both HDMI video and HDMI audio , sending audio and video signals to computers and smartphones for preview and storage. Plug and play, no need to install other driver software, suitable for high definition acquisition, teaching recording, medical imaging, etc. How to connect? Micro USB power cable connects to Micro USB port to supply power Input port: input the stream video through the HDMI “Input” port. Output port: connect the monitor through the HDMI “Output” port to preview the stream video in real time. Connect it to the computer through the USB 2.0 port, use “VLC / OBS / Amcap, etc.” to edit the video at the Key Features: Support HDMI loop out Support input HDMI max 4K@60Hz, max output HDMI & USB 1080P@30Hz Support most acquisition software, such as VLC、OBS 、Amcap, etc; Conform to USB Video and UVC standard Conform to USB Audio UAC standard Support video format 8/10/12 bit Deep color Video output format YUV、JPEG Support audio format L Max working current 0.7A/5V DC Operating Temperature range (-10 to +55℃)
