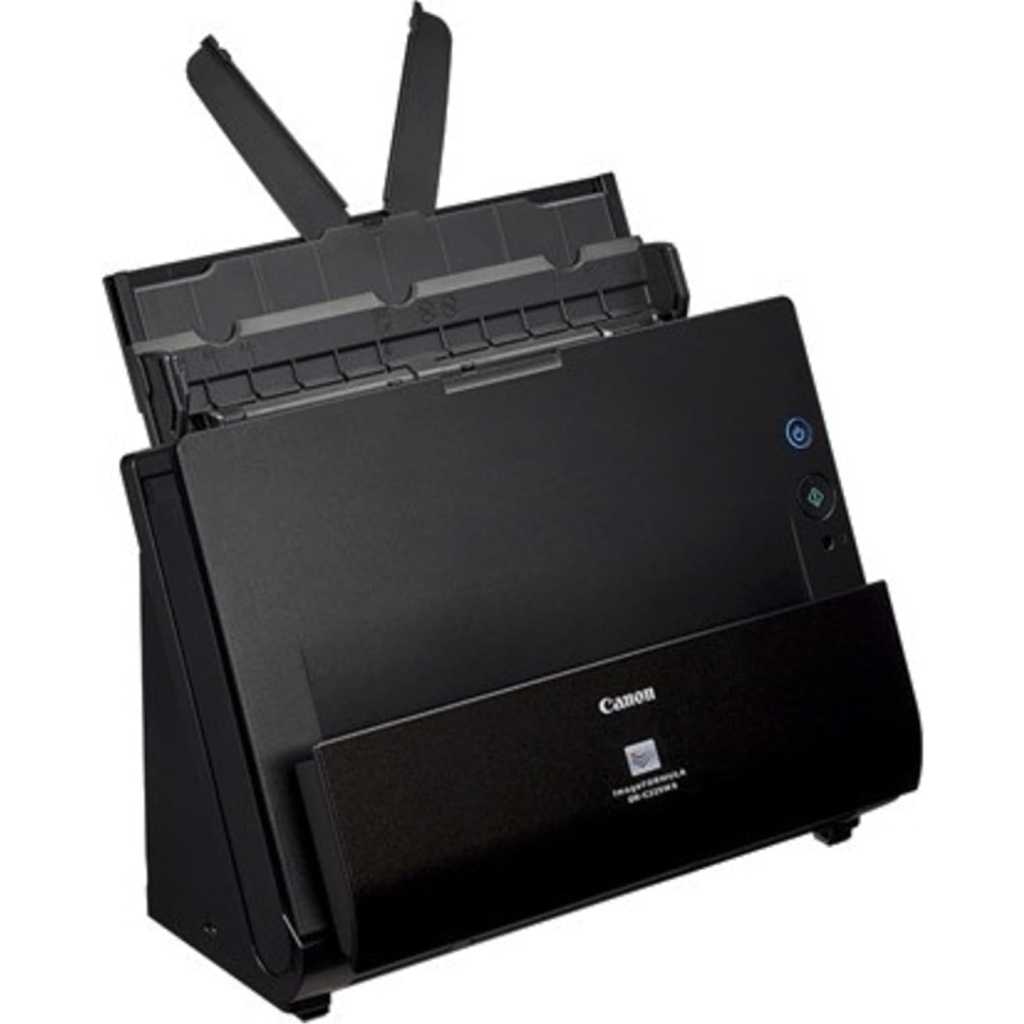

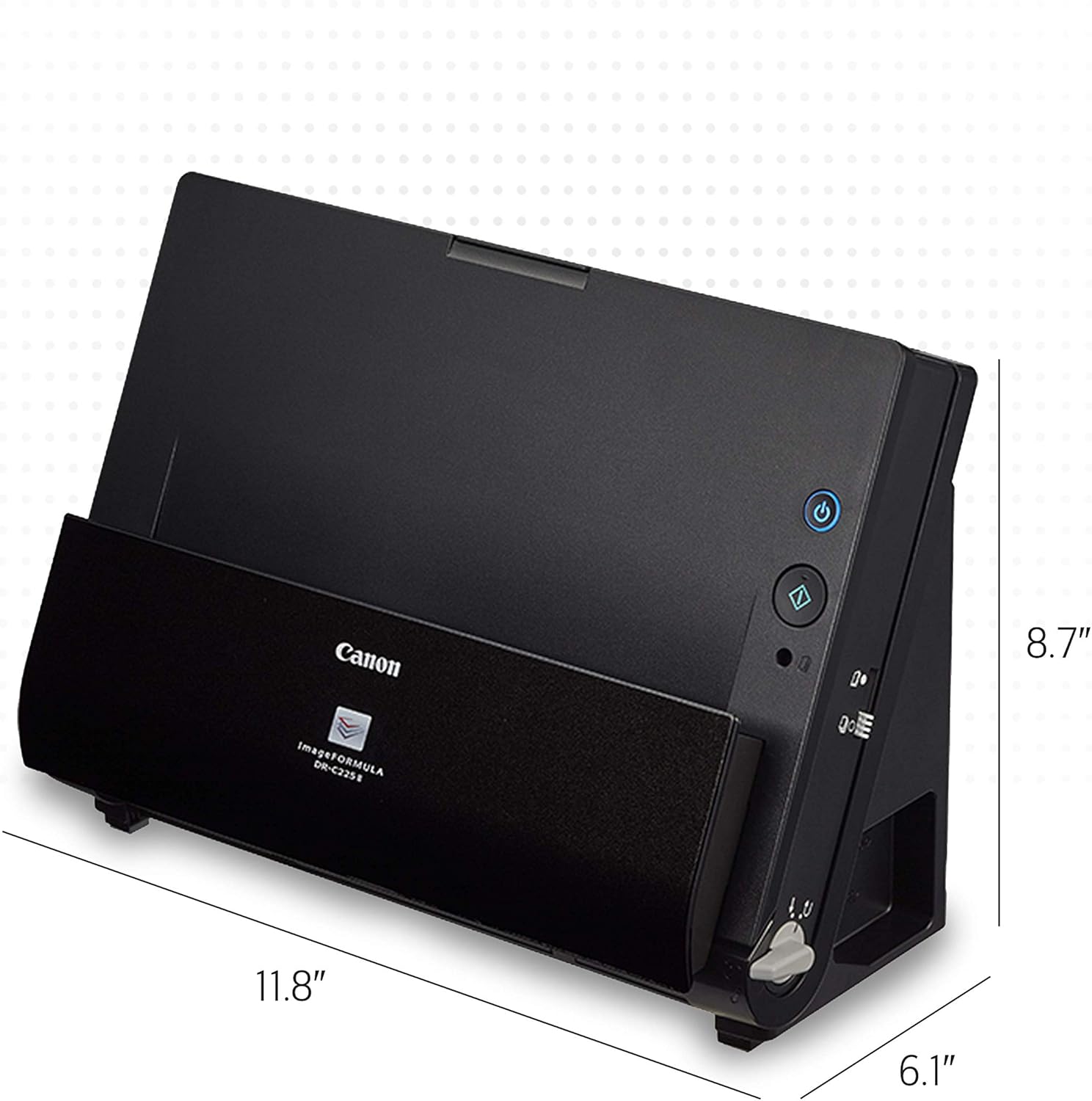

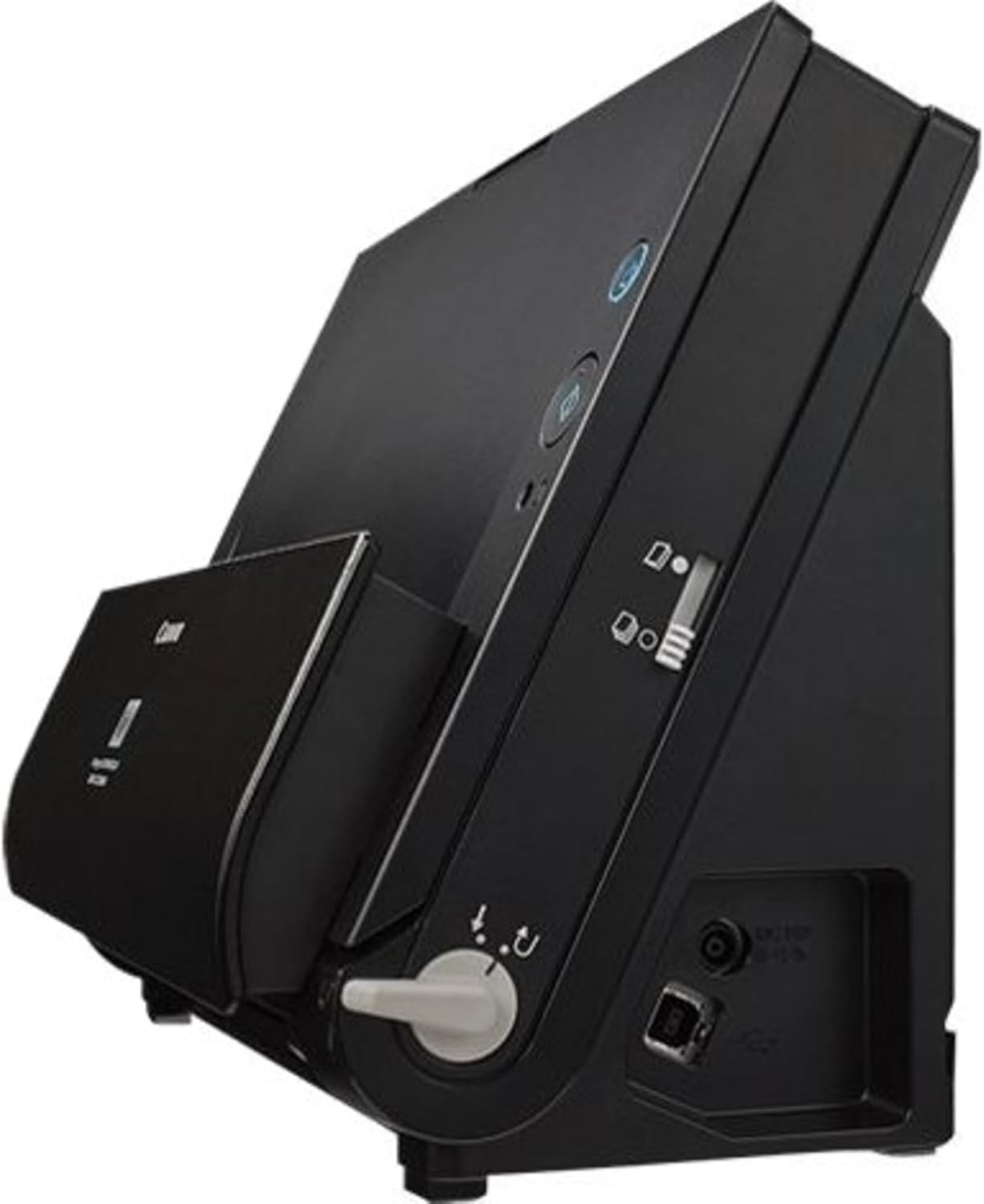

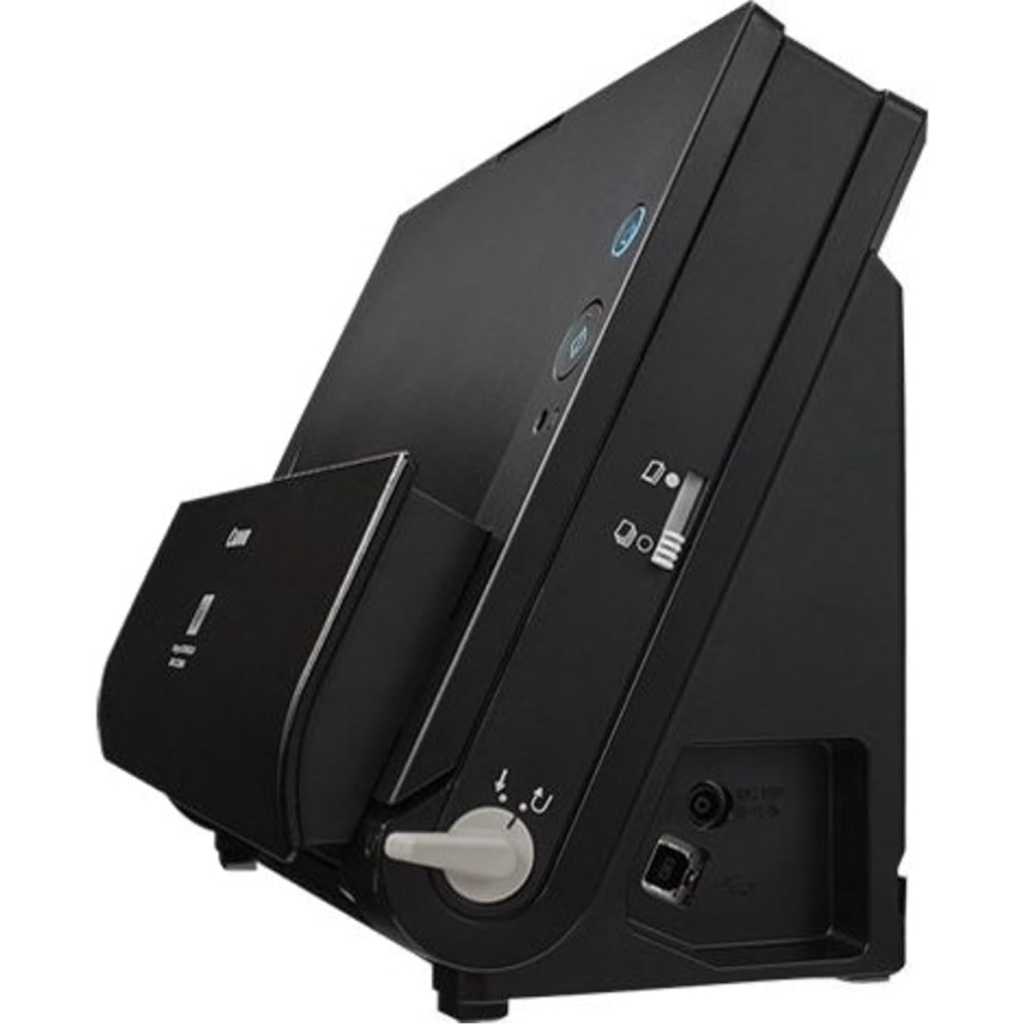

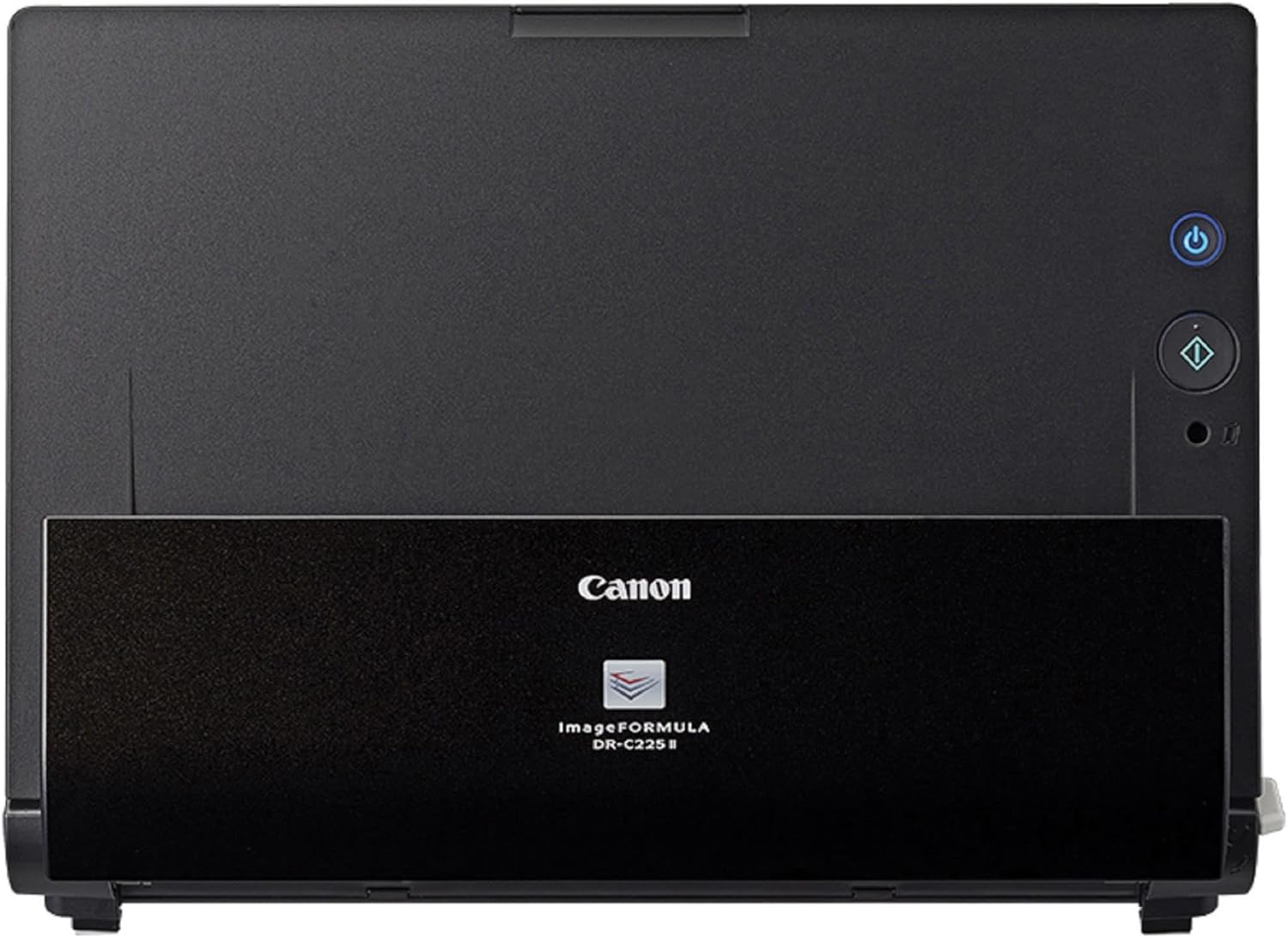

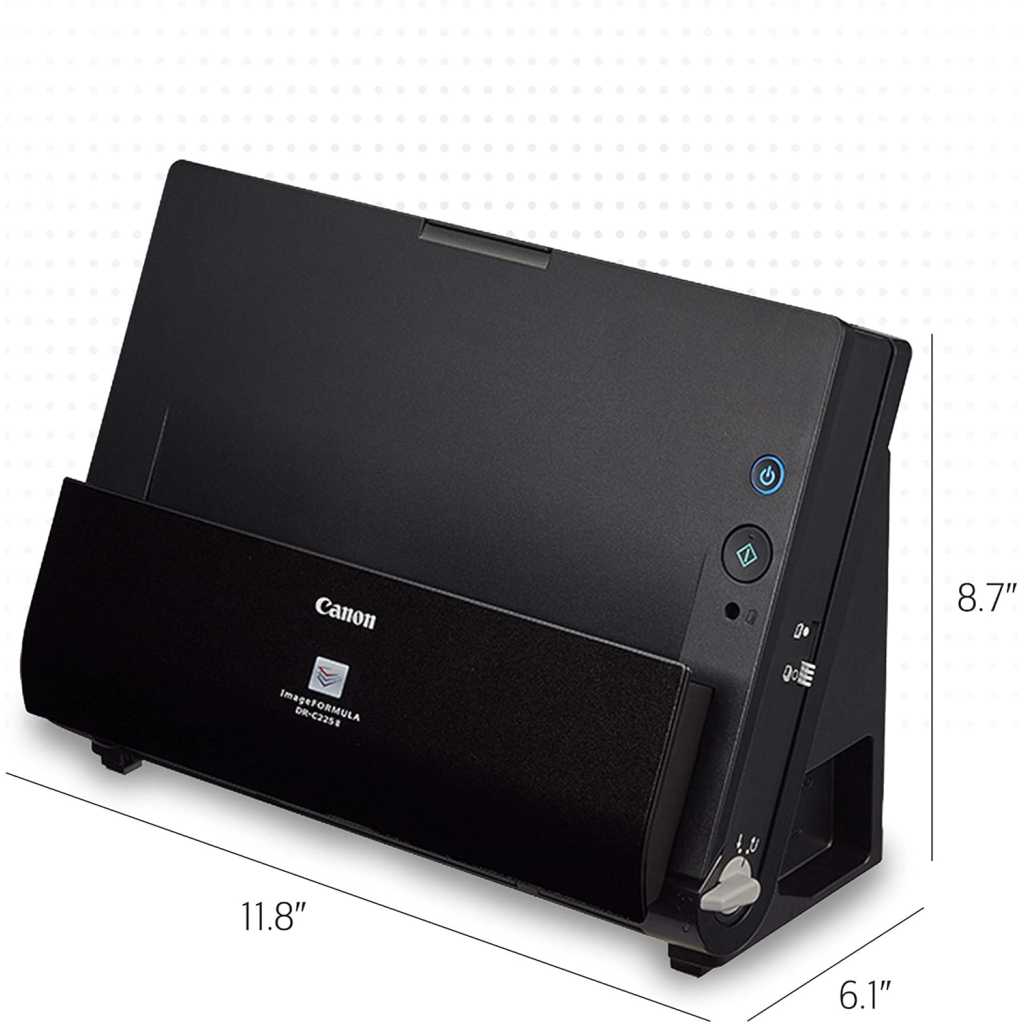

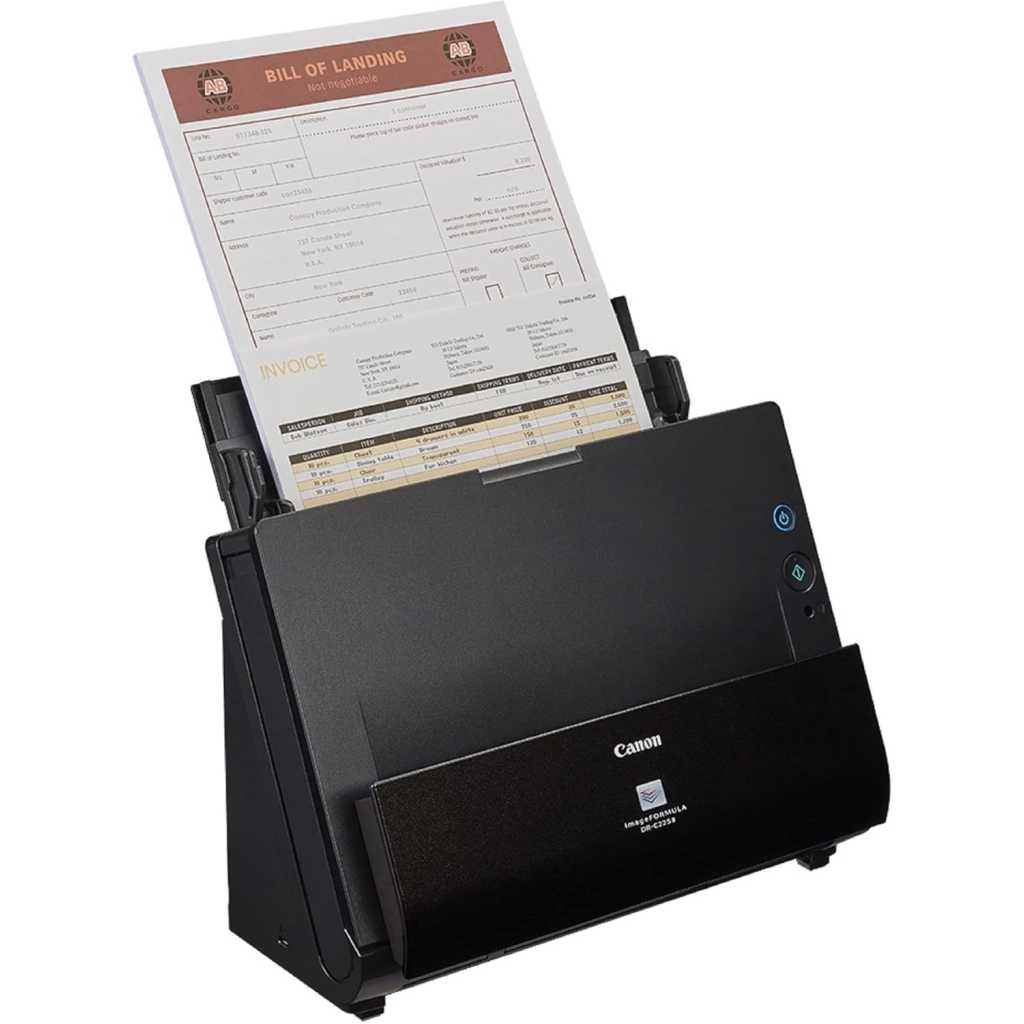

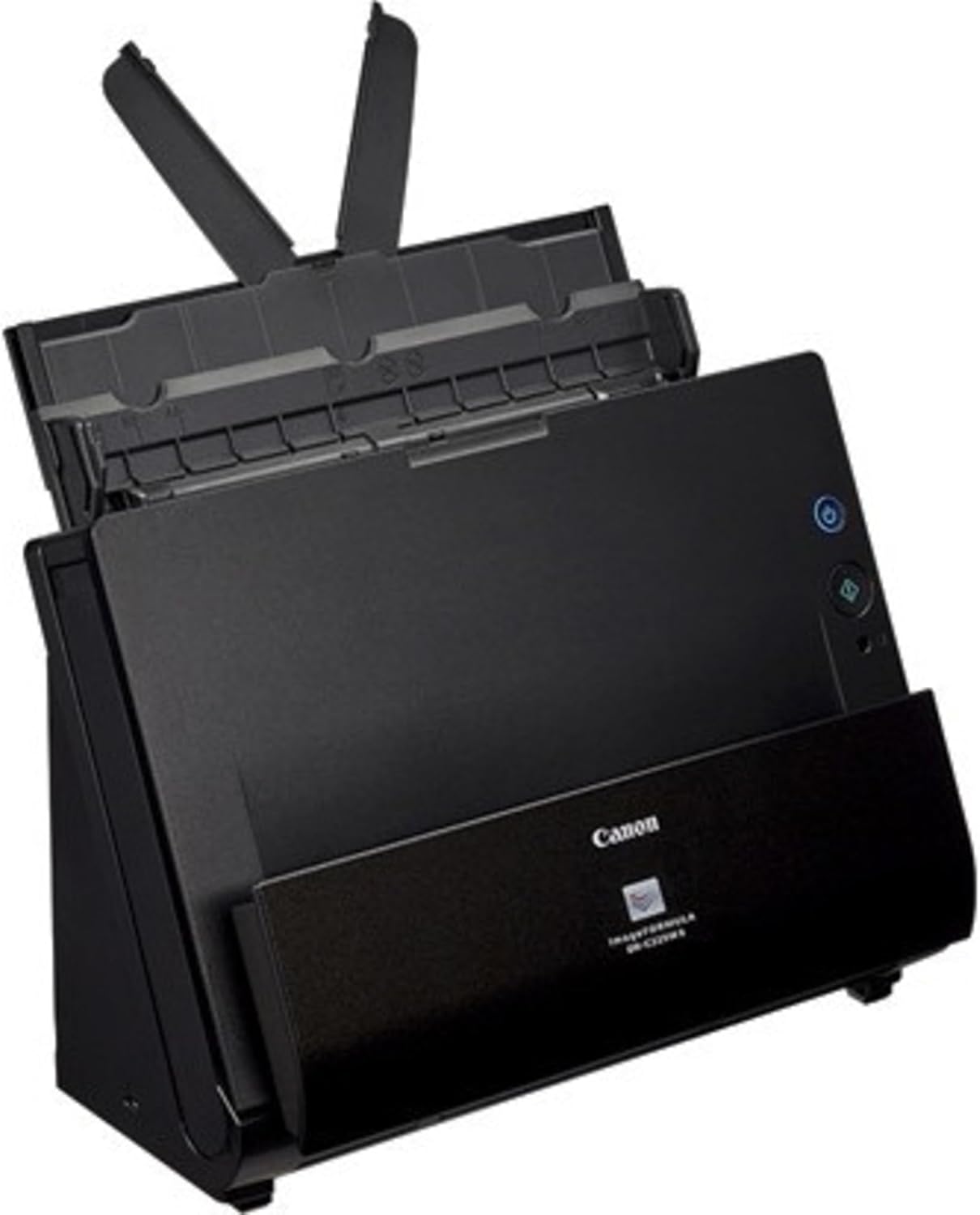

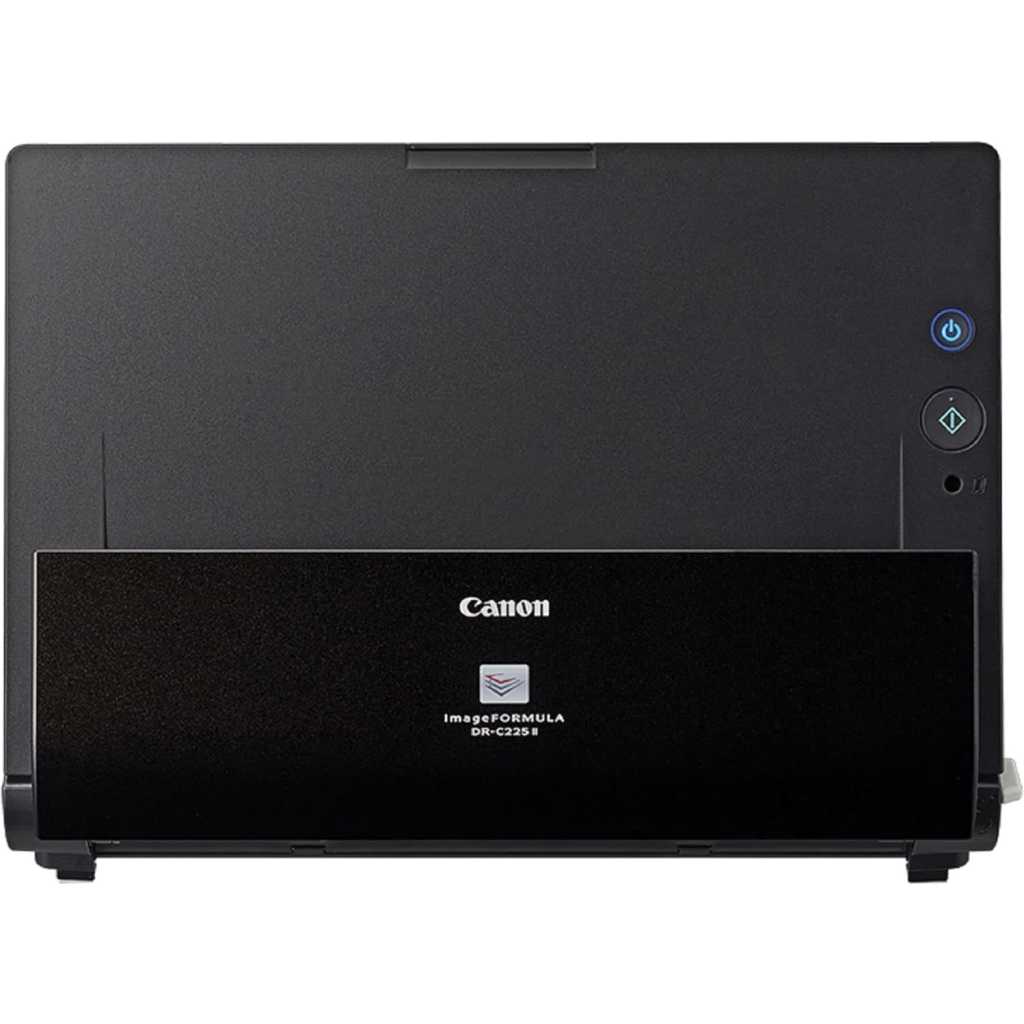

imageFORMULA DR-C225 II Maximize desk space with the slim & smart compact scanner Built compact without comprising speed or quality with a minimalist design achieved by eliminating obstructive tray extensions. Specification General Product Information Type Desktop Type Sheet Fed Scanner Scanning Sensor Unit CMOS CIS 1 Line Sensor Optical Resolution 600 dpi Light Source RGB LED Scanning Side Simplex / Duplex / Folio / Skip Blank Page Interface High-speed USB 2.0 (USB 3.0 compatible) Dimensions (W x D x H) Tray Closed: 300 x 156 x 220 mm Tray Opened: 300 x 235 x 339 mm Weight Approx. 2.8 kg Power Requirements AC100 – 240V (50/60Hz) Power Consumption Scanning: 12.7W or less Sleep mode: 1.8W or less Power turned off: 0.5W or less Operating Environment Temperature: 10 – 32.5 °C (50 – 90.5 °F) Humidity: 20 – 80% RH Environmental Compliance RoHS Scanning Specifications Black and White 25 ppm / 50 ipm Colour 25 ppm / 50 ipm Output Resolution 150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi Auto Resolution Setting Colour Mode Detect Automatically Black and White Error Diffusion Advanced Text Enhancement I Advanced Text Enhancement II (Windows only) 256-Level Grayscale 24-bit Colour Daily Duty Cycle 1,000 to 2,500 scans/day Document Specifications Width J-Path: 50.8 – 216 mm Straight Through: 50.8 – 216 mm Length J-Path: 70 – 356 mm Straight Through: 53.9 – 356 mm Thickness J-Path: 52 – 128 g/m² (0.06 – 0.15 mm) Straight Through: 40 – 209 g/m² (0.05 – 0.25 mm) Long Document Mode Straight Through: Up to 3000 mm Card Scanning Straight Through: 53.9 x 85.5 mm Thickness: less than 0.76 mm (Embossed Card supported) Paper Separation Retard Roller Method Feeder Capacity 45 sheets (A4, 80 g/m²) Special Features Image Processing Background Smoothing Prevent Bleed Through / Remove Background Erase Shadow Colour Dropout (RGB) Colour Enhancement (Red) Moire Reduction Double Feed Detection Ultrasonic Sensor / By Length Others Automatic Page Size Detection MultiStream Prescan Text Orientation Recognition Deskew Image Rotation Job Setting Bundled Software Windows ISIS / TWAIN Driver (Windows 2000/XP Pro/XP Home/Vista/7/8/10) CaptureOnTouch Pro CardIris Mac ISIS / TWAIN Driver CaptureOnTouch Other Options Consumables Exchange Roller Kit Accessories A4 Flatbed Scanner Unit 102 A3 Flatbed Scanner Unit 202 Carrying case Key Features: Stay organized: Easily convert your paper documents into digital formats (searchable PDF, JPG, and more) or scan directly to the cloud (Dropbox, Google Drive, OneDrive, Box, QuickBooks Online, Evernote, SharePoint, and more) Space saving design: Upright, with top feed and top eject, and a built in cable organization system. Supported Operating Systems – Windows 7/8/8.1/10 Service Pack 1 or later (32-bit/64-bit) or later, Windows Server 2008 R2 2012/R2 2016 Service Pack 1 or later. MAC – 10.11 Reliably handles many different document types: Receipts, photos, business cards, plastic or embossed cards, reports, contracts, long documents, thick or thin documents, and more Fast and efficient: Scans both sides of a document at the same time, in color, at up to 25 pages per minute, with a 30 sheet automatic feeder, and one touch operation Broad compatibility: Supports Windows and Mac; TWAIN driver also included Bundled software: Powerful, yet easy to use scanning software, as well as a business card organizer and a tool for businesses to create, view, edit, convert, and collaborate with PDF files
